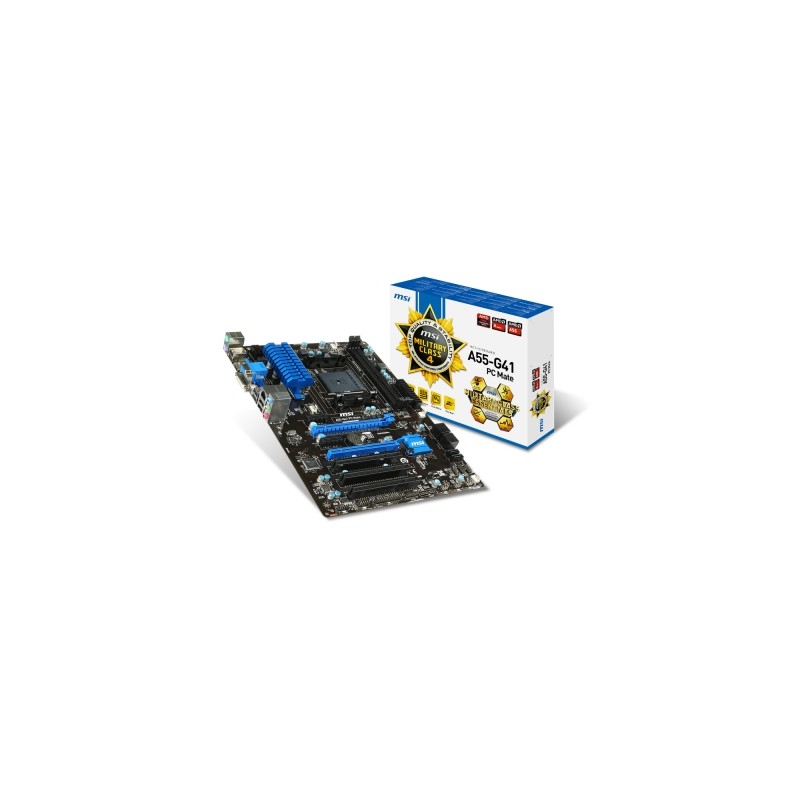

MSI A55-G41 PC MATE FM2 + AMD A55 2DDR3 ATX

A55-G41 PC MATE

• Socket FM2
• Socket FM2+

• AMD Athlon
• AMD A Series

AMD A55

• 1333 MHz
• 1600 MHz
• 1866 MHz
• 2133 MHz

• SATAII controller integrated in AMD A55 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports (SATA1~6) by A55


• RAID
- SATA1~6 support AMD Rapid Storage Technology enterprise (RAID 0/ 1/ 10) by AMD A55

Realtek® ALC887 Codec

Realtek® RTL8111E Gigabit LAN

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 6 x USB 2.0 ports
- 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz, 24bpp
- 1 x DVI-D port, supporting a maximum resolution of 2560 x1600 @60Hz, 24bpp/ 1920x1200 @ 60Hz, 24bpp
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz, 36bpp*/ 3840x2160@30Hz, 36bpp*/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp
- 1 x LAN (RJ45) port
- 3 x audio jacks

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 3Gb/s connectors
- 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x 3-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper
- 2 x USB power jumpers

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

30.5 cm x 21.4 cm

• Windows 7
• Windows 8
