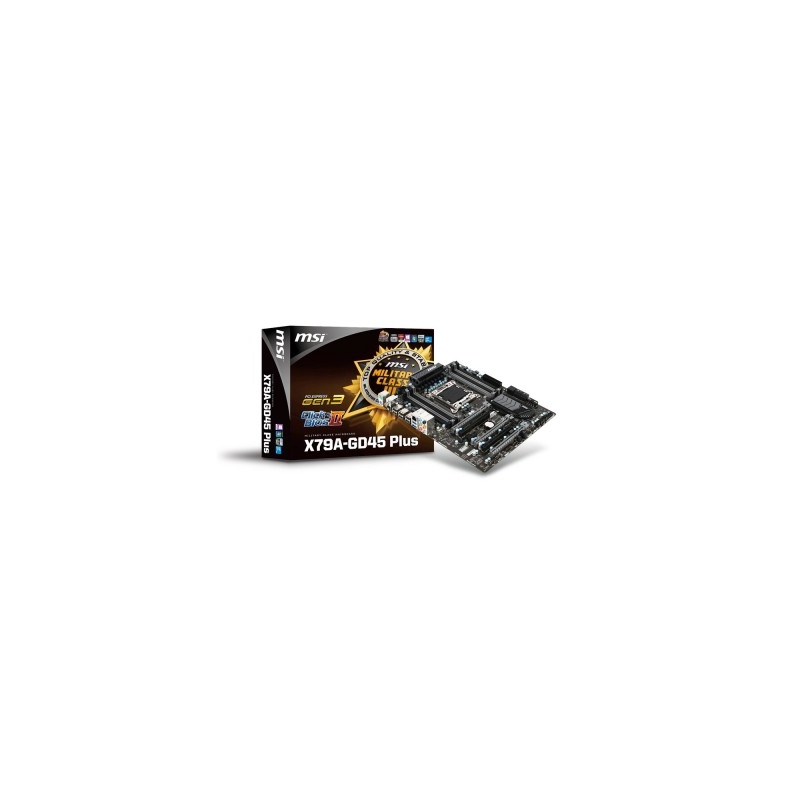

MSI X79A-GD45 PLUS s2011 X79 8DDR3 USB3/RAID ATX BOX

X79A-GD45 Plus

Intel® X79 Chipset

• 1066 MHz
• 1333 MHz
• 1600 MHz
• 1800 MHz
• 2133 MHz
• 2400 MHz

• SATAII controller integrated in Intel® X79 chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by X79

• SATAIII controller integrated in Intel® X79 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by X79

• RAID
- SATA1~2 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1) by Intel X79
- SATA3~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel X79

brak

• Chipset integrated by Realtek® ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

- 1 x PS/2 Keyboard port
- 1 x PS/2 Mouse port
- 1 x Clear CMOS button
- 1 x Coaxial SPDIF-out port
- 1 x Optical SPDIF-out port
- 1 x RJ45 LAN Jack
- 6 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x 6 in 1 audio jack

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x 4 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 2 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 4 x Serial ATAII connectors
- 2 x Serial ATAIII connectors
- 1 x Serial port connector
- 1 x TPM Module connector
- 1 x Clear CMOS jumper
- 1 x Power button
- 1 x OC Genie button
- 1 x Multi BIOS switch
- 1 x Voice Genie connector
- 1 x MultiConnect Panel connector

• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

• 30.5cm(L) x 24.4cm(W)
