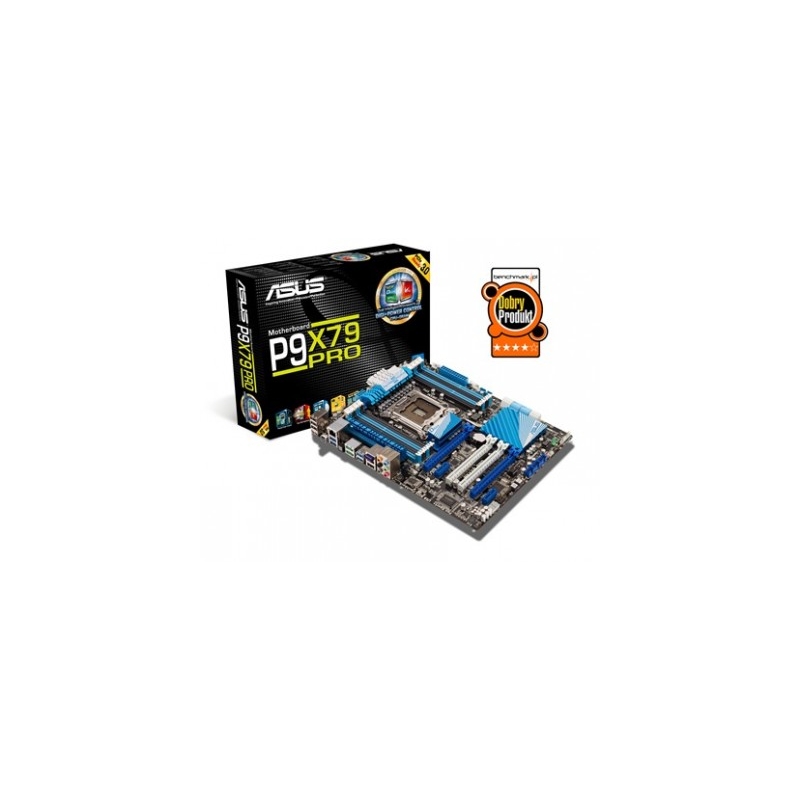

Asus P9X79 s2011 X79 8DDR3 FIRE/RAID/USB3/GLAN ATX

Intel® X79

• 1066 MHz
• 1333 MHz
• 1600 MHz
• 1866 MHz
• 2133 MHz
• 2400 MHz

Intel® X79 chipset :
2 x SATA 6Gb/s port(s), white
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
ASMedia® ASM1061 controller :
1 x Power eSATA 6Gb/s port(s), green
1 x eSATA 6Gb/s port(s), red

BRAK

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel

1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 6Gb/s
1 x Power eSATA 6Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
4 x USB 3.0
6 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x Optional Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Clear CMOS jumper(s)

ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
ASUS TPU :
- Auto Tuning
- TurboV
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 + 2 Phase CPU Power Design
- Industry leading Digital 2 + 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert+
ASUS EZ DIY :
- USB BIOS Flashback
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

30.5 cm x 24.4 cm

User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
