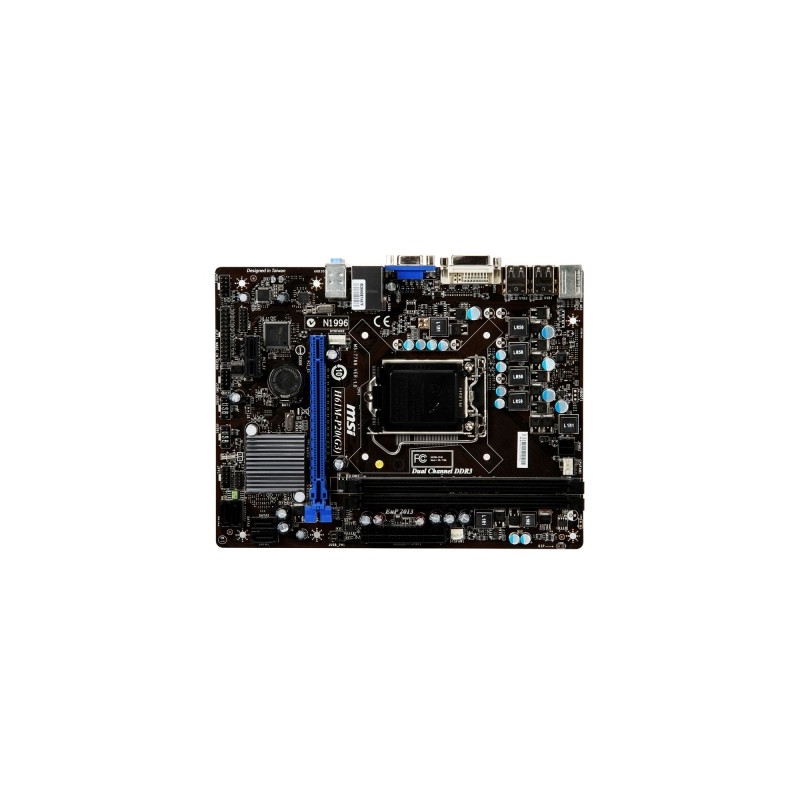

MSI H61M-P20 s1155 H61 2DDR3 USB2/LAN/DVI mATX BULK

H61M-P20 (G3)

• Intel Celeron
• Intel Pentium
• Intel Core i3
• Intel Core i5
• Intel Core i7

Intel® H61 (B3) Chipset

• 1066 MHz
• 1333 MHz

• SATAII controller integrated in Intel® H61 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA1~4) by H61 (B3) PCH

• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

• Supports one PCI Express LAN 10/100 Fast Ethernet by Realtek 8105E.

- 1 x PS/2 Mouse port
- 1 x PS/2 Keyboard port
- 6 x USB 2.0 ports
- 1 x Graphic Card port
- 1 x DVI-D port
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 2 x USB 2.0 connectors
- 4 x Serial ATAII connectors
- 1 x Clear CMOS jumper
- 1 x Serial port connector
- 1 x Parallel port connector

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

22.6cm(L) x 17.3cm(W)
